Resin Grip™ Project Review

Rio Tinto

Project Summary

Client	Rio Tinto
Location	Clermont, Queensland
Colour	Light Grey (N35)/Various
Area	3000m2
Installer	The Epoxy Coating Specialists

Comments

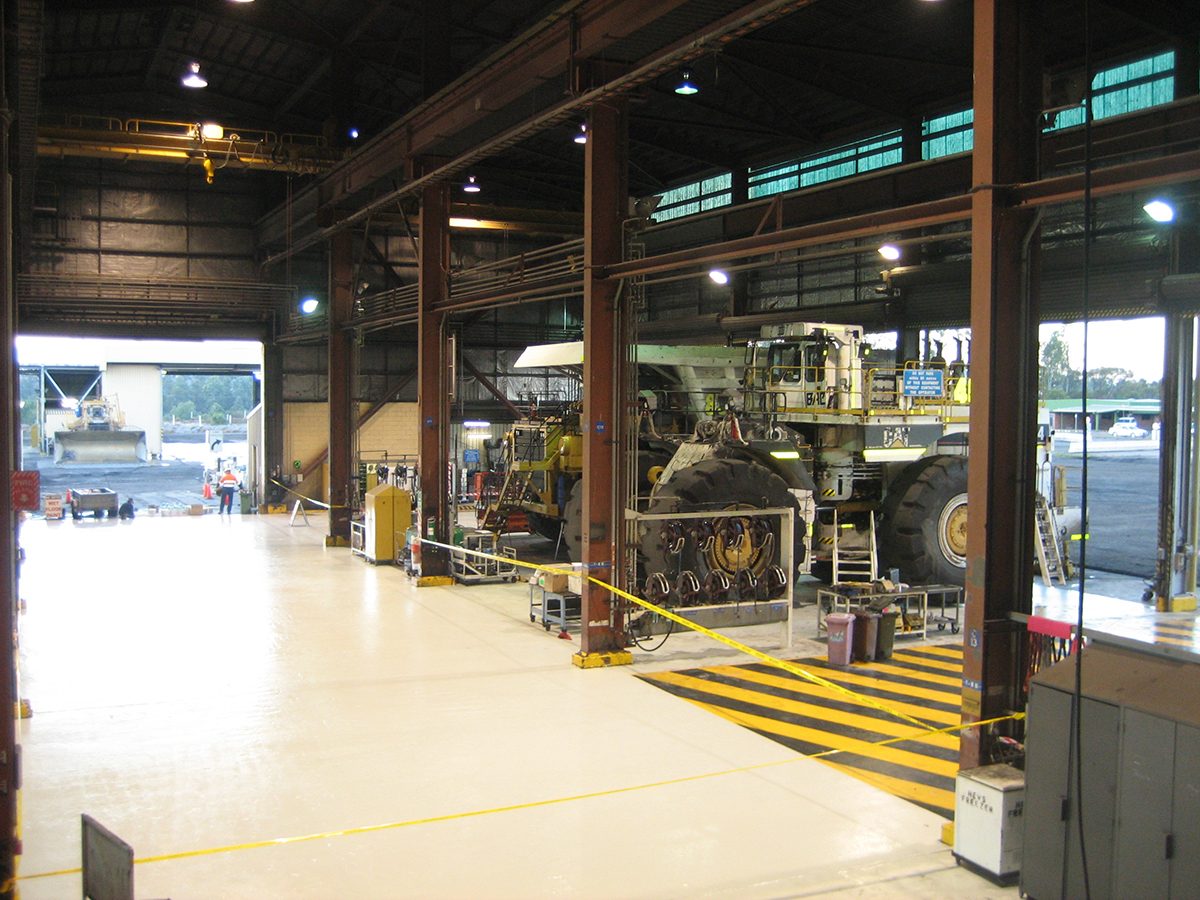

• The existing epoxy coating had been worn down and needed to be replaced. In fact, the old floor was so badly damaged that fitters were unable to wheel tool trolleys across the surface.


• Surface preparation consisted of diamond grinding and high-pressure hot water rotary cleaning with a heavy-duty degreasing solution. Damaged areas were filled using an epoxy mortar consisting of Jaxxon 1525, aluminium oxide and quartz filler.

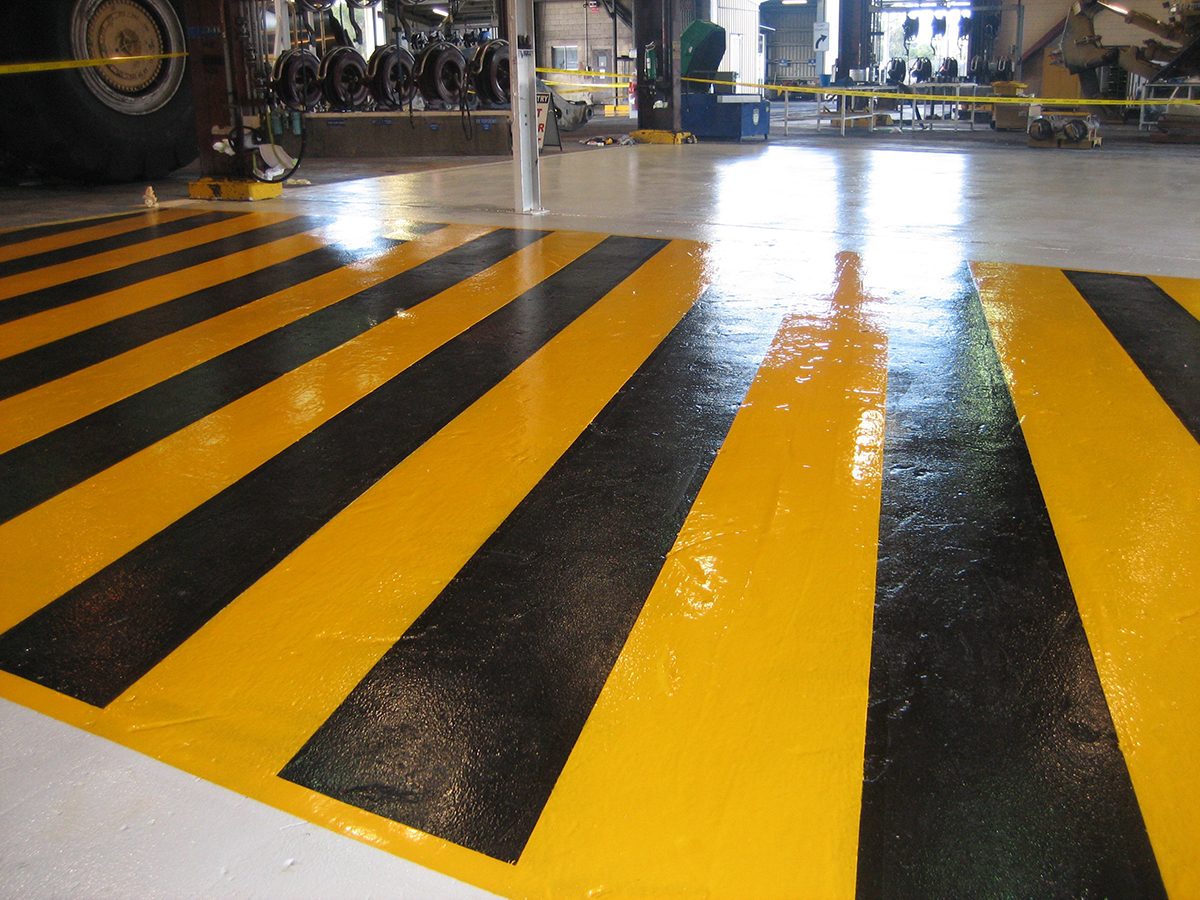

• The Kevlar®-reinforced Jaxxon 1525 was then applied and broadcast with aluminium oxide for a non-slip epoxy flooring finish, followed by a topcoat of Jaxxon 1525 to encapsulate the particles and fully seal the floor.

Download Case History
